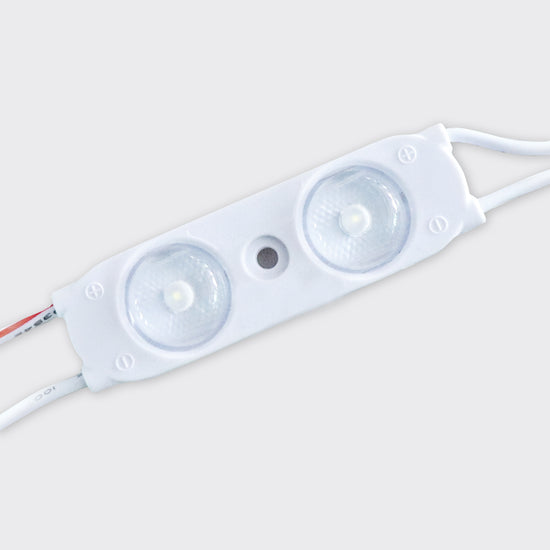

0.72 Watt Back Light Modules
BL-MOD-912-CW
A bright back lighting module suitable for light boxes between 60–200mm deep. Available in a cascades of 50 modules with 128mm cable between each.
- Specification
- Downloads
WATTS
0.72W per module
LUMENS
52lm per module
COLOUR TEMPERATURE
6500K Cool White
CRI
≥80
BEAM ANGLE
160°
DIMENSIONS
W16 × H7.4 × L53mm (Module)
L4400mm (Cascade of 25 modules)
CUTTING LENGTH
128mm cable between each module can be cut
MAX RUN PER POWER FEED
25 modules (Single power feed)
50 modules (Double power feed)
MOUNTING
3M adhesive backing and provision for screw mounting
WARRANTY
3 years
