BASELINE 02
BL-LP-B02AC-2M

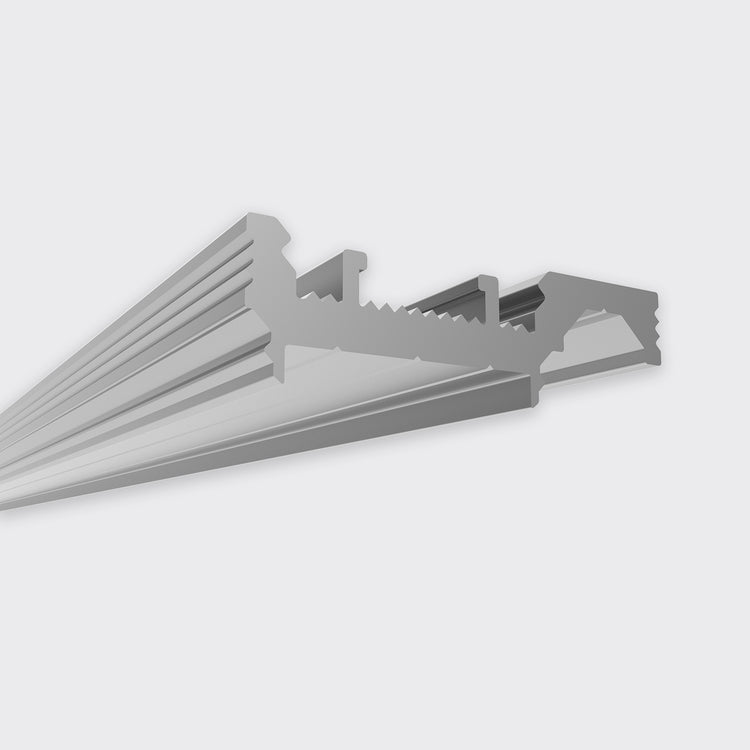

BASELINE 02 is a simple heatsink perfect for cove or concealed lighting. Designed for surface mounting, a 45° spring steel clip is available for mounting on an angle if desired, to direct light right where it is needed.

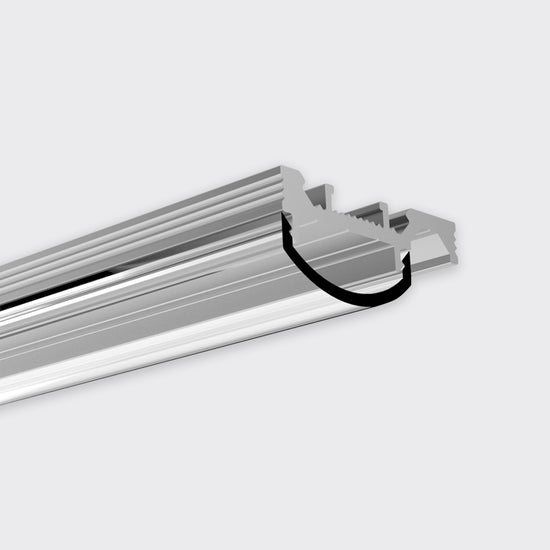

BASELINE 02 has a separate countersinking channel allowing LED ribbon to be added prior to installation, and with an optional clear diffuser to keep LED free from dust while ensuring maximum light output. The profile comes in anodised aluminium only and end caps are not available for this product.

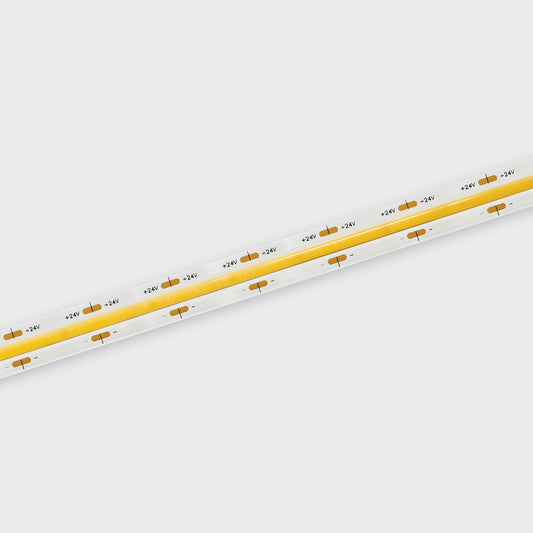

This product does not include LED ribbon, if you need help choosing our sales team can talk you through the best options for your application.
- Specification
- Accessories
- Downloads
DIFFUSER
Clear polycarbonate

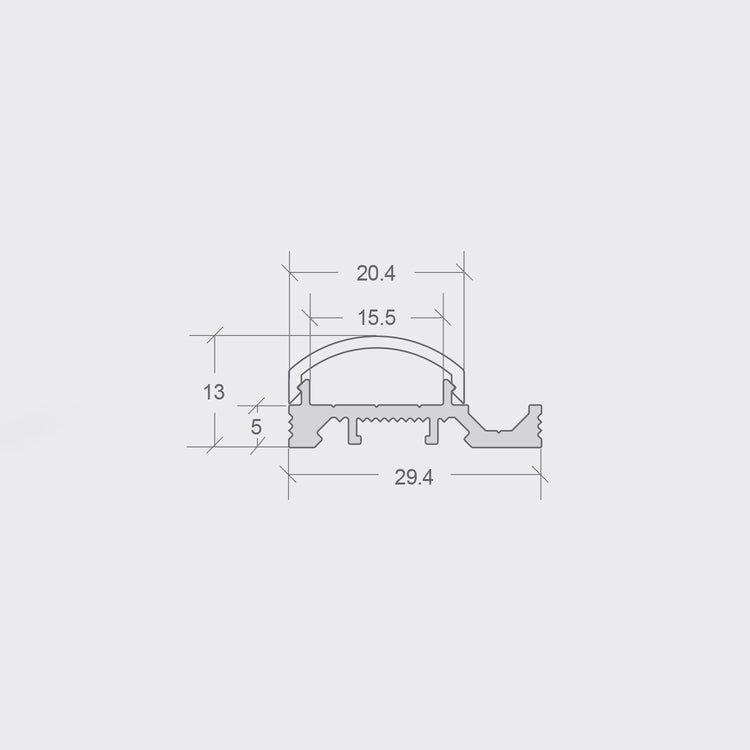

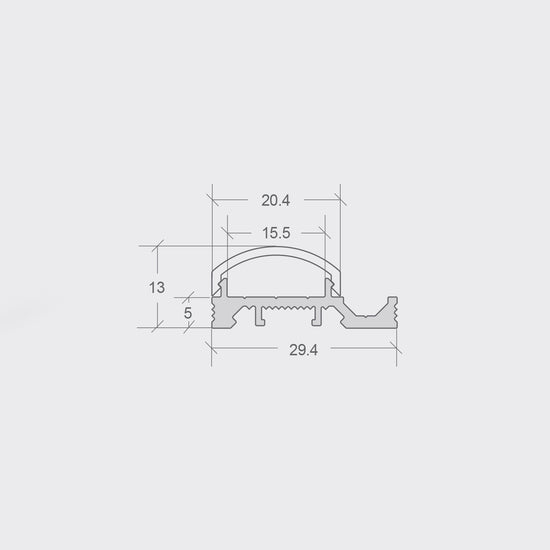

DIMENSIONS
W29.4 × H13 × L2000mm
MOUNTING
Surface mount
FEATURES

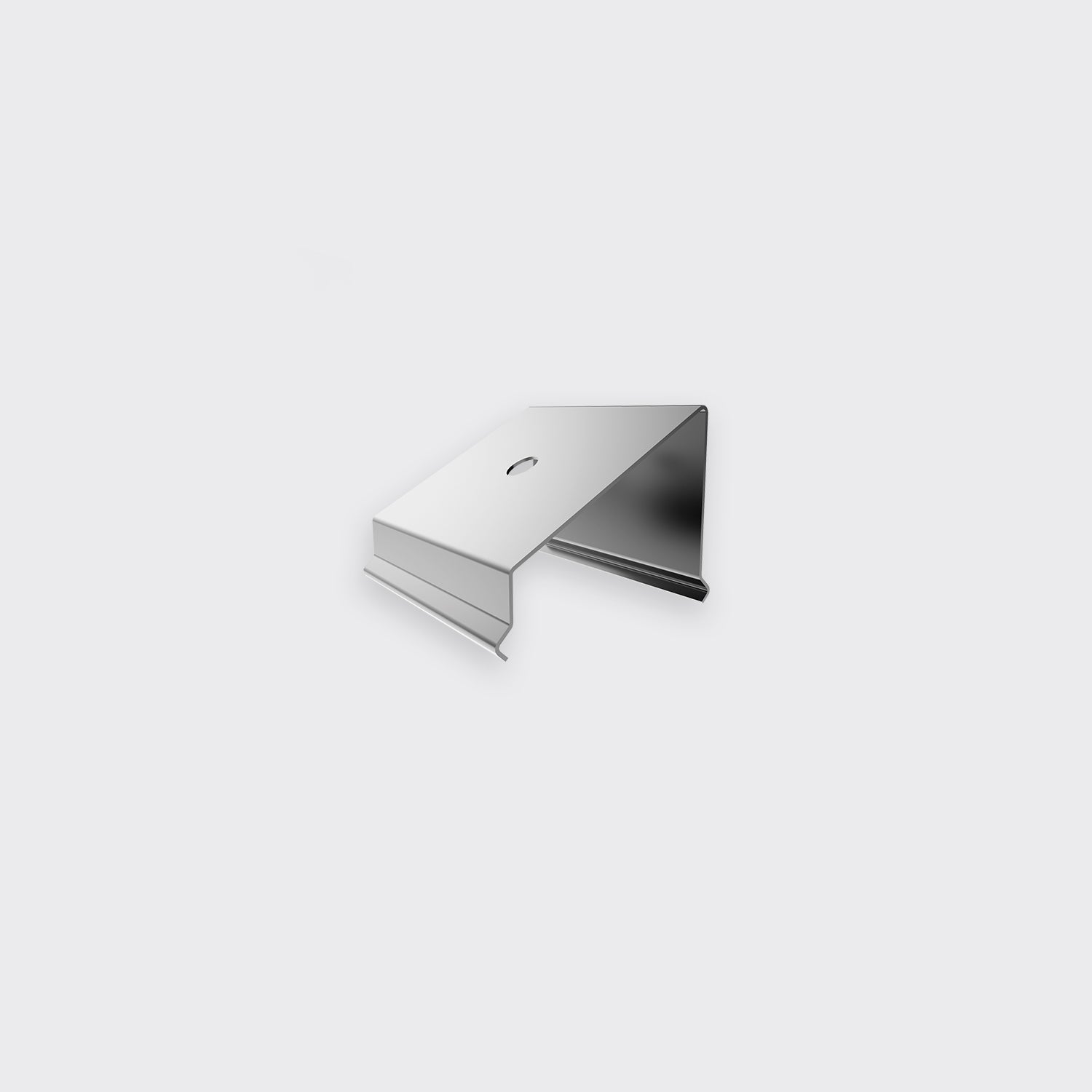

45° mounting clip available
