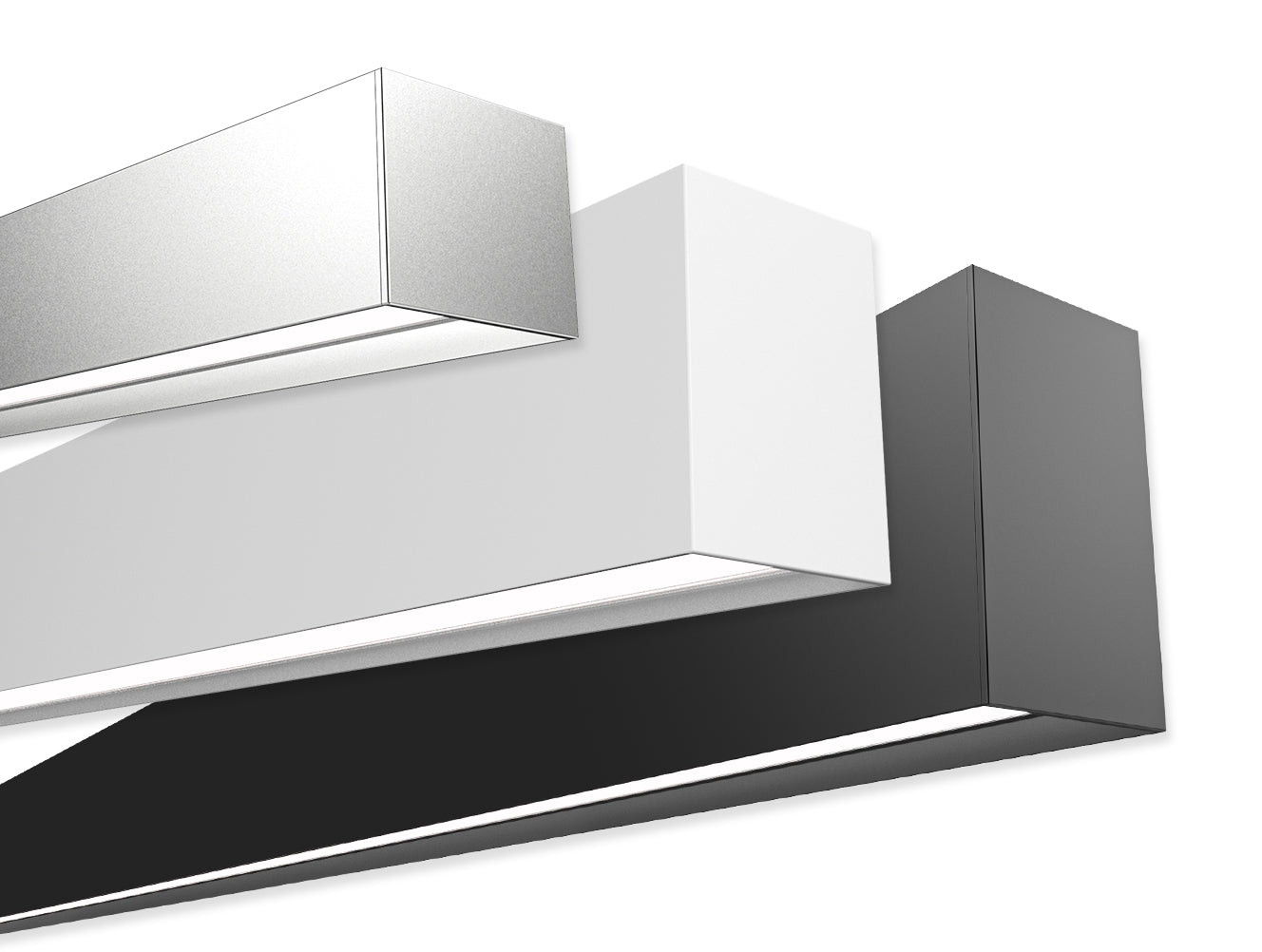

Highline 05 Luminaires

Our HIGHLINE 05 luminaires are a popular, modern lighting choice for both residential and commercial lighting projects.

These can be either suspended as a pendant or surface mounted, providing either direct or indirect & direct illumination. The luminaire is available between 1 and 3 metres to your desired length. There are options of silver, black or white powder-coat finishes and choices between the classic flat or softer curved edge end caps. Highline 05 luminaires use our rolled opal diffuser.

Longer lengths and bespoke shapes are available by request as custom products.

VIEW INSTALLATION GUIDE

View Highline 05 Luminaires

Highline 05
Design Spec
check list

Download PDF

Looking for a brochure?

DOWNLOAD PDF

OPTIONS & FEATURES

  • LIGHT SOURCE

    LIGHT SOURCE

    Down lighting only (available for all sizes).

    Great for task lighting on benches or surfaces.


    Up & down lighting with two circuit control (57 × 78mm & 57 × 100mm)
    Indirect lighting is a glare free approach to illumination that brightens a space.

  • MODEL

    MODEL

    Luminaires are available in three heights.


    50mm, 78mm, 100mm

    All models have a width of 57mm

  • LIGHT COLOUR

    LIGHT COLOUR

    2700K Extra Warm White

    3000K Warm White

    4000K Natural White


    Choose warm white for an inviting & cosy feel - perfect for homes. Use natural white to simulate daylight and create crisp, vivid work spaces and offices.

  • CUSTOM LENGTH

    CUSTOM LENGTH

    Each luminaire is made to your desired length between 1 and 3 metres.

    Perfect for matching to an existing bench top or working to that unique office configuration.

  • TRIAC DIMMABLE DRIVER

    TRIAC DIMMABLE DRIVER

    All luminaires come with TRIAC dimmable drivers.


    50mm model (Offboard driver)

    78mm & 100mm models
    (Onboard driver)

  • WATTAGE, LUMENS & PHOTOMETRICS

    WATTAGE, LUMENS & PHOTOMETRICS

    Downlight
    25W & 1900 lumens per metre


    Up lighting
    18W & 1100 lumens per metre


    A set of photometric files are available for your lighting designs.

  • FINISH & END CAPS

    FINISH & END CAPS

    Silver, Black or White powder-coat


    Select from either the standard flat or the curved edge end caps.

  • MOUNTING

    MOUNTING

    Luminaires can be either suspended as a pendant or surface mounted. All suspension wires, clear flex cable and mounting kits are included.
