ELEMENT 62

E62-111

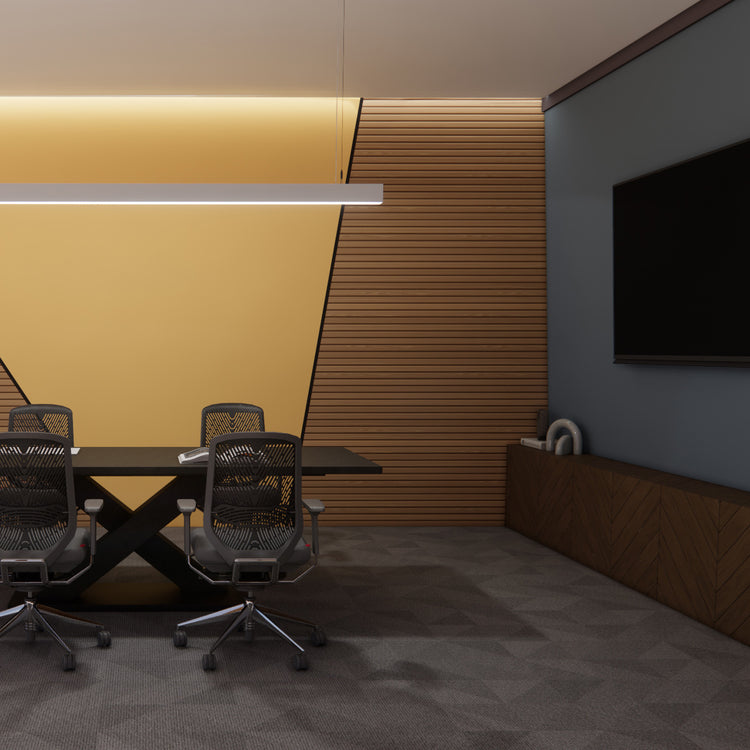

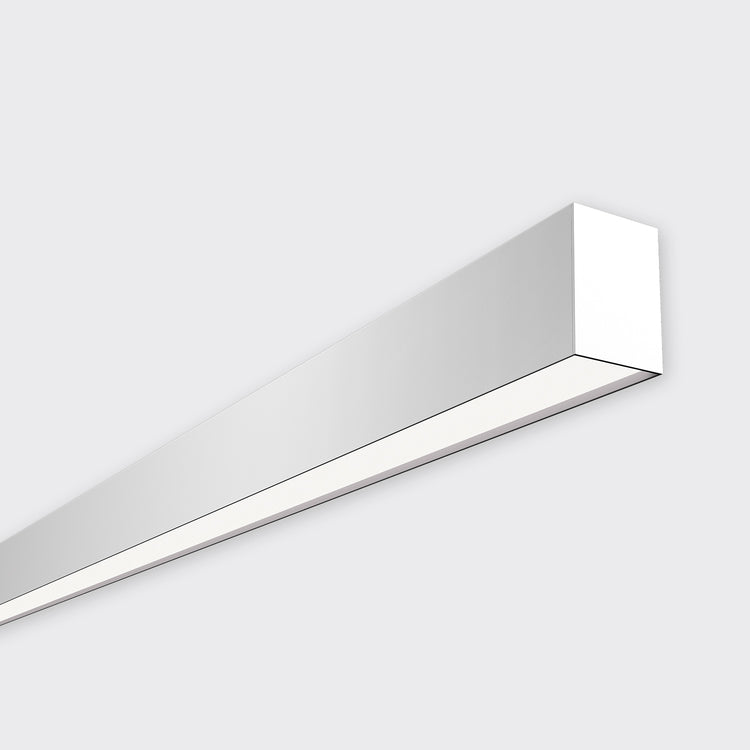

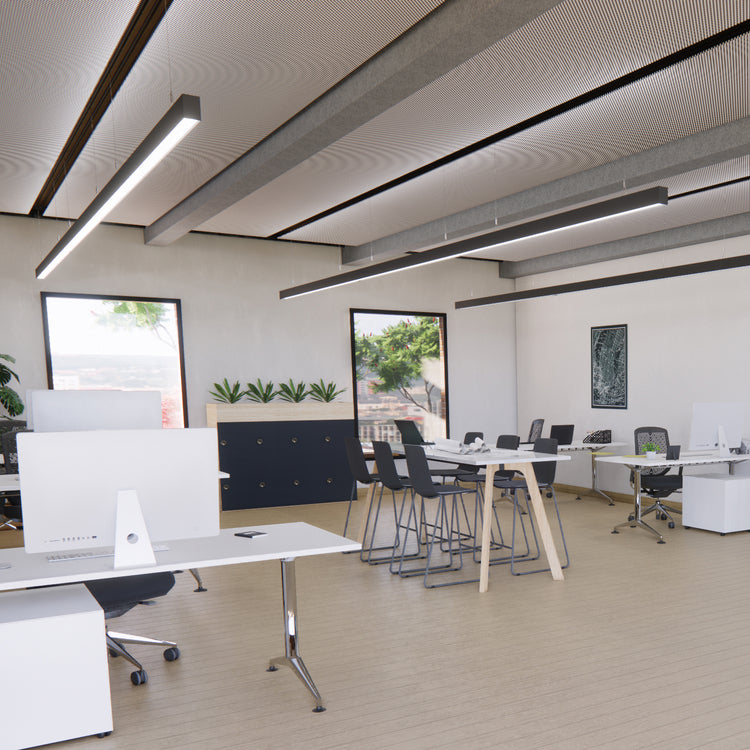

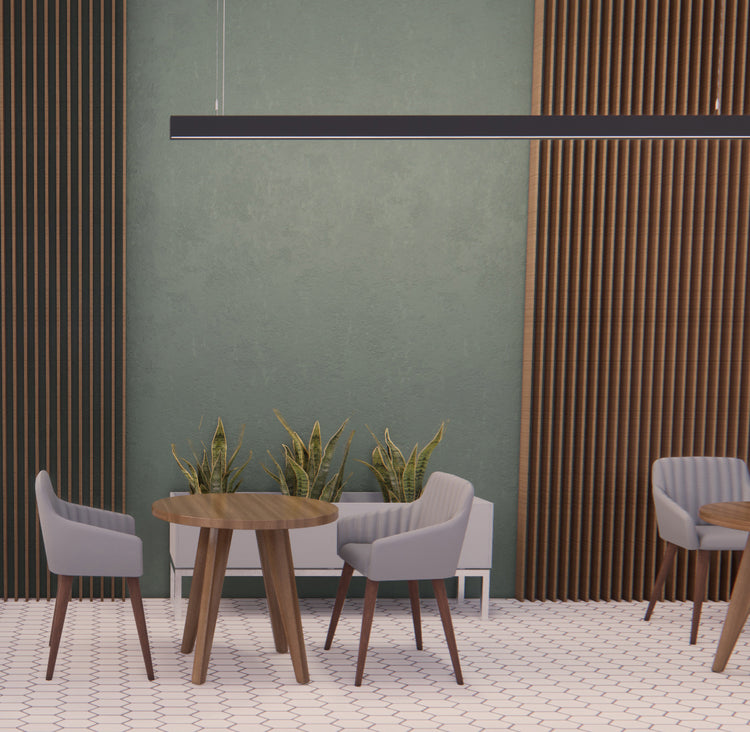

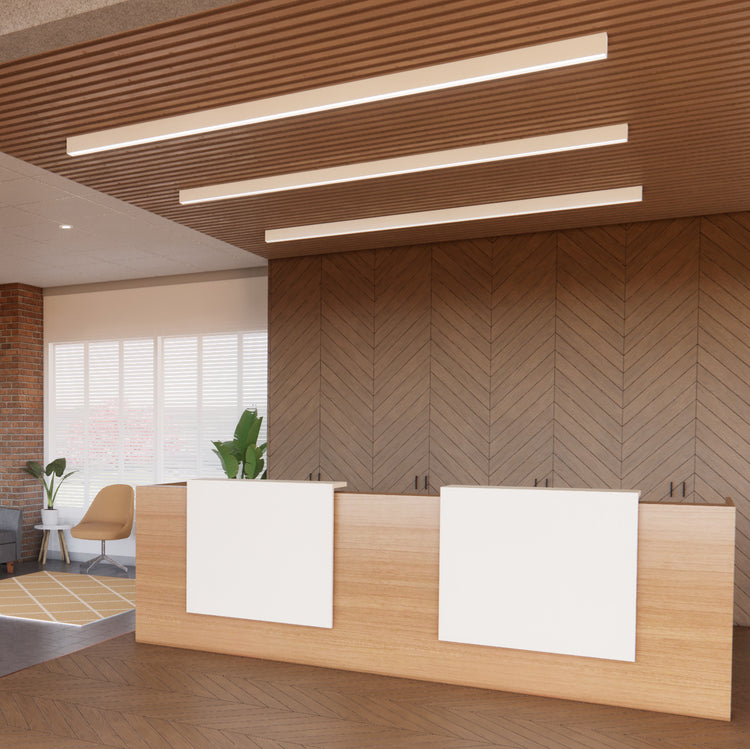

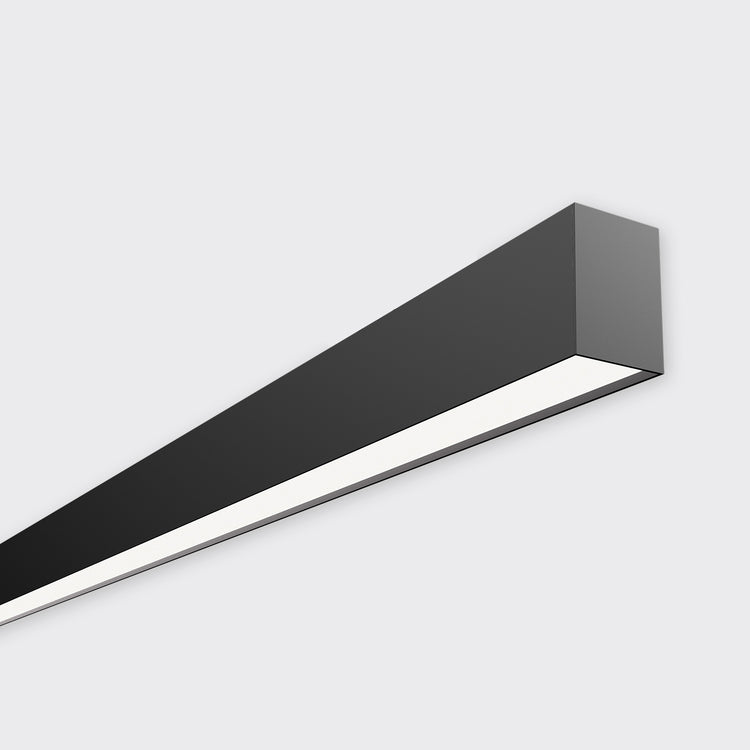

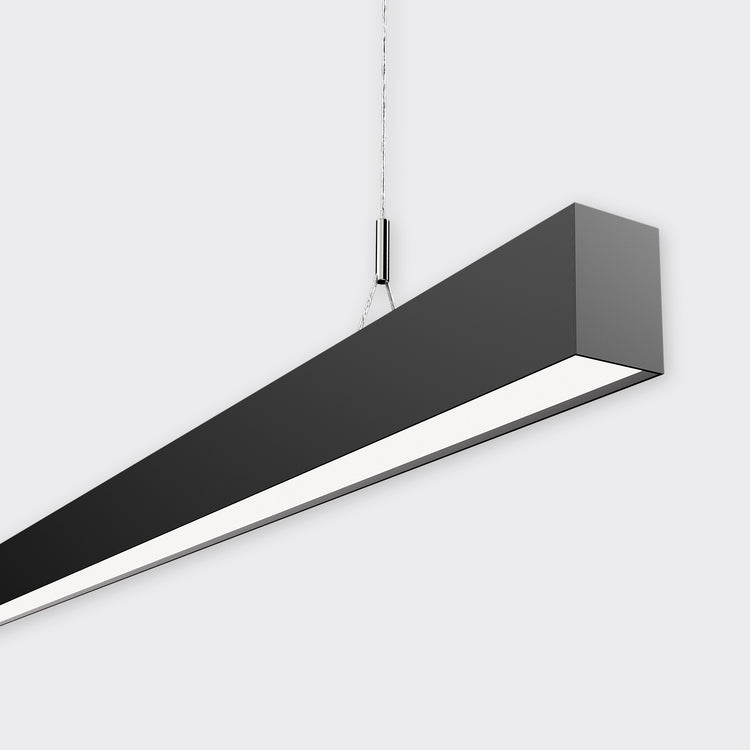

ELEMENT 62 is a high-quality commercial linear luminaire with options to suspend or surface mount (ceiling or wall).  Check out the ELEMENT Overview page for more information.

Select your desired mount option, light distribution, optic, control, and luminaire finish, then your lumen package & CCT.  Tell us your desired length and our configurator will work out the best module sizes, all you need to tell us your ideal length and we’ll match it as close as possible. Element IES files are available for download or by request.

FEATURES:

  • Rolled Diffuser - Our continuous rolled diffuser provides a seamless light surface (up to 50metres).
  • Low Glare Optics - Our revolutionary 3-layer optical design gives best in class glare control properties and UGR compliance up to 2000lm/m.
  • Internal power connections and mechanical joins - Longer lengths can be easily joined together by using the built-in power connector system retaining a sleek look with a single external power cable.
  • Finishes - Featuring Dulux Protexture powder-coat offering scratch resistant technology in black, white and silver as standard, with custom colours available.



NOTE:  Full codes will depend on specific luminaire options. Refer to the specification pdf in the downloads tab.

  • Specification
  • Downloads
LUMENS

Direct: 1000–4000lm/m
Indirect: 1500–3500lm/m

COLOUR TEMPERATURE

3000K or 4000K

CRI

≥90

DIFFUSER

Opal or Low Glare Diffuser

FINISH

Metro Silver Pearl, Black, or Appliance White powder-coat
Custom-colour finishes available by request

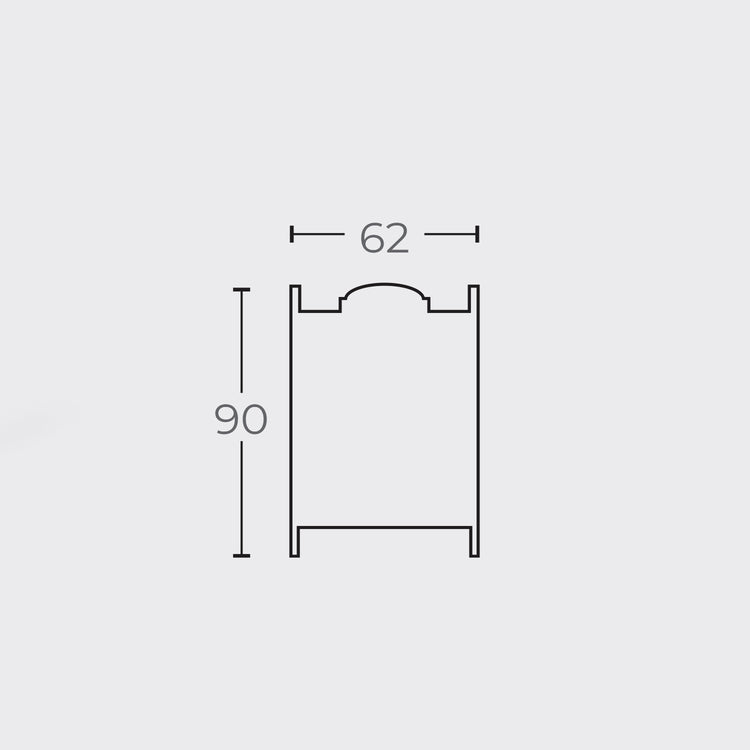

DIMENSIONS

W62 × H90mm

MAX RUN PER POWER FEED

10 metres

MOUNTING

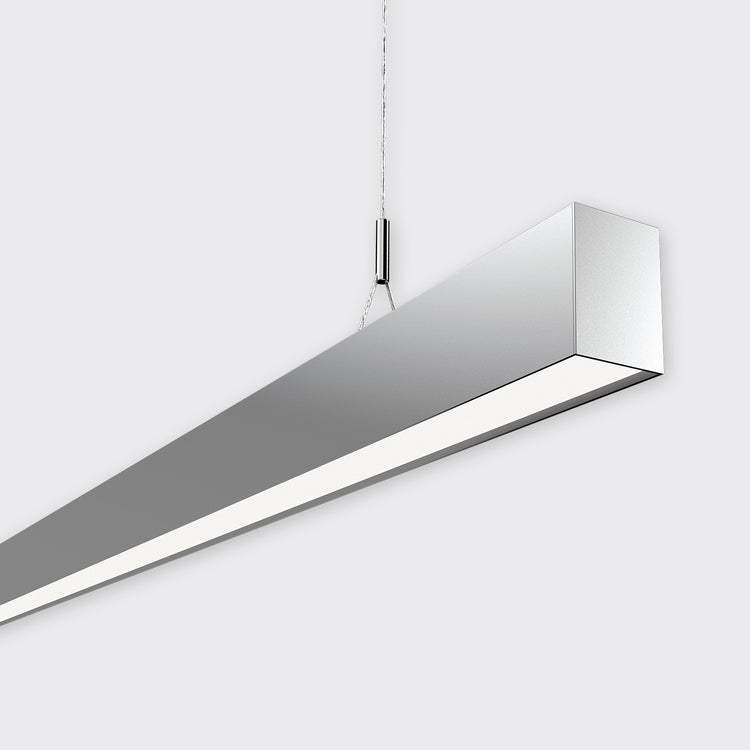

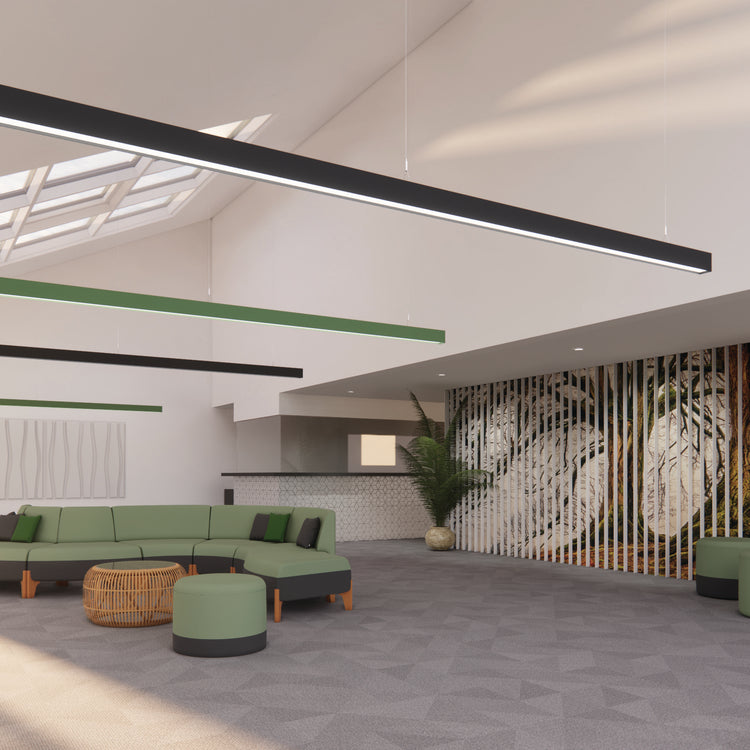

4m Wire Suspension for flat or pitched ceiling
6m suspension version available upon request.

WARRANTY

10 years
