ELEMENT 80

E80-51

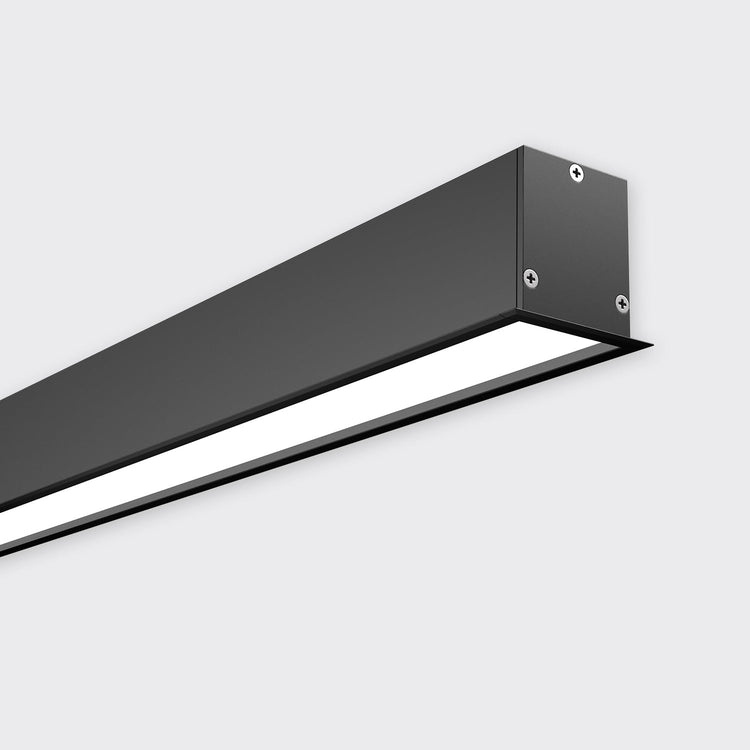

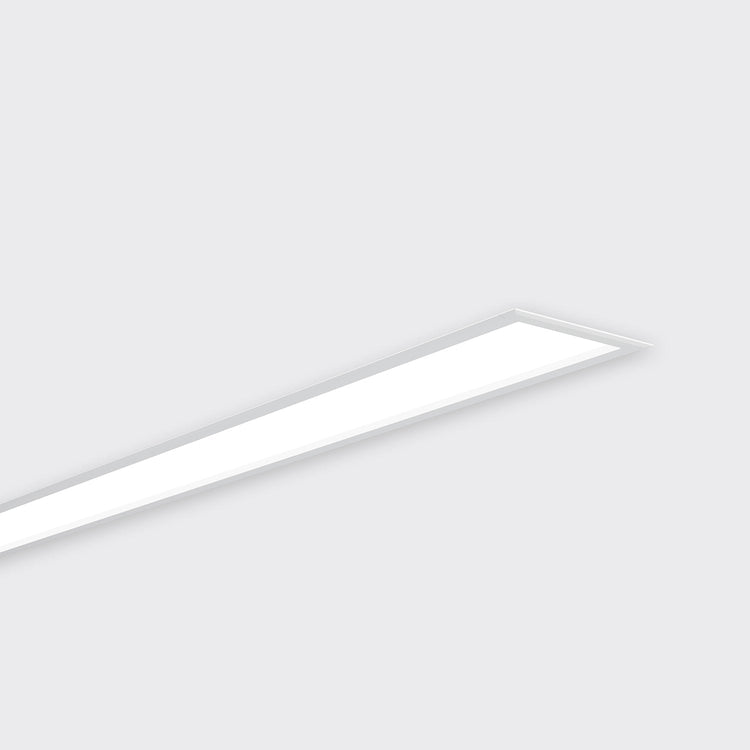

ELEMENT 80 is a high-quality, recessed, commercial linear luminaire. Check out the ELEMENT Overview page for more information.

Select your optic, control, and luminaire finish, then your lumen package & CCT.  Tell us your desired length and our configurator will work out the best module sizes to match it as close as possible.

FEATURES:

  • Rolled Diffuser - Our continuous rolled diffuser provides a seamless light surface (up to 50metres).
  • Low Glare Optics - Our revolutionary 3-layer optical design gives best in class glare control properties and UGR compliance up to 2000lm/m.
  • Internal power connections and mechanical joins - Longer lengths can be easily joined together by using the built-in power connector system retaining a sleek look with a single external power cable.
  • Finishes - Featuring Dulux Protexture powdercoat offering scratch resistant technology in black, white and silver as standard, with custom colours available.
  •

    NOTE:  Full codes will depend on specific options, refer to the specification pdf in the downloads tab.

    • Specification
    • Downloads
    LUMENS

    1000–4000lm/m

    COLOUR TEMPERATURE

    3000K or 4000K

    CRI

    ≥90

    DIFFUSER

    Opal or Low Glare Diffuser

    FINISH

    Metro Silver Pearl, Black, or Appliance White powder-coat
    Custom-colour finishes available by request

    DIMENSIONS

    W80 × H80mm
    (62mm aperture)

    MAX RUN PER POWER FEED

    20 metres

    CUT-OUT

    66–74mm

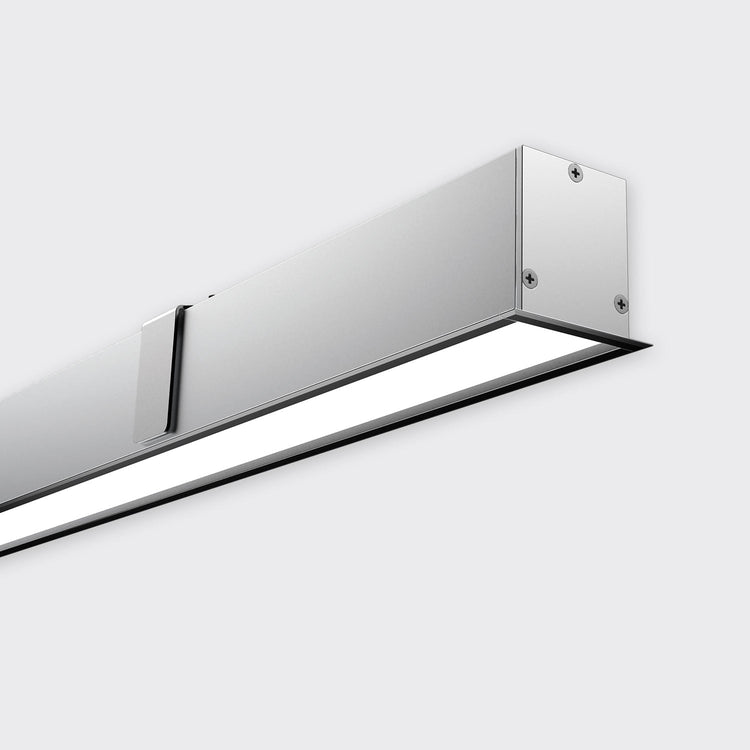

    MOUNTING

    Mounting clip

    WARRANTY

    10 years
