12W/m Encapsulated | CURVE | RGB | IP66

BL-LS-4350-RGB

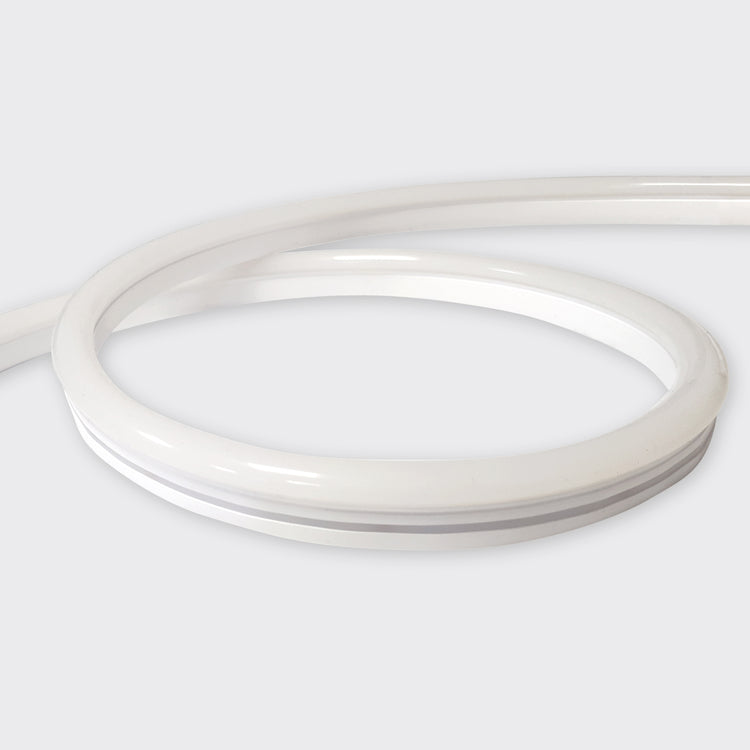

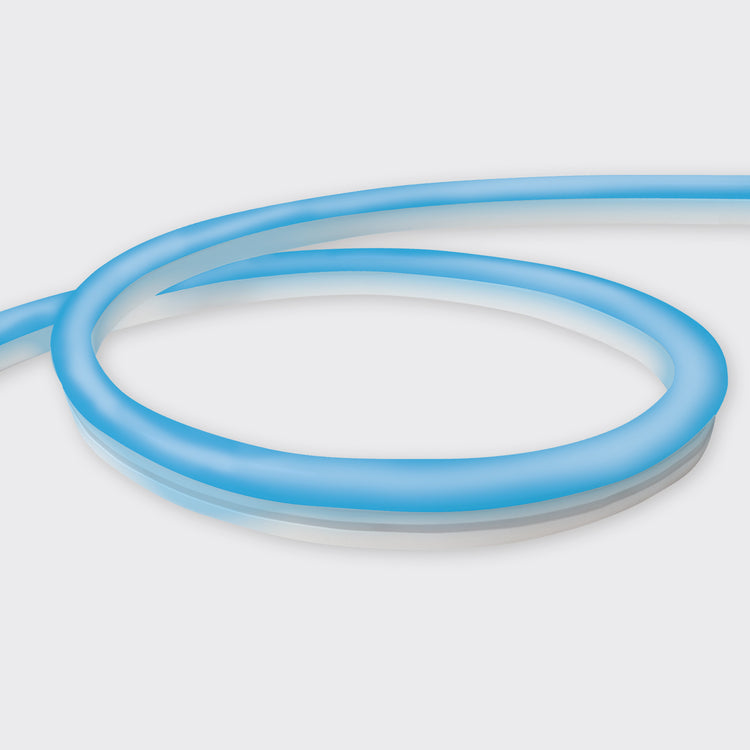

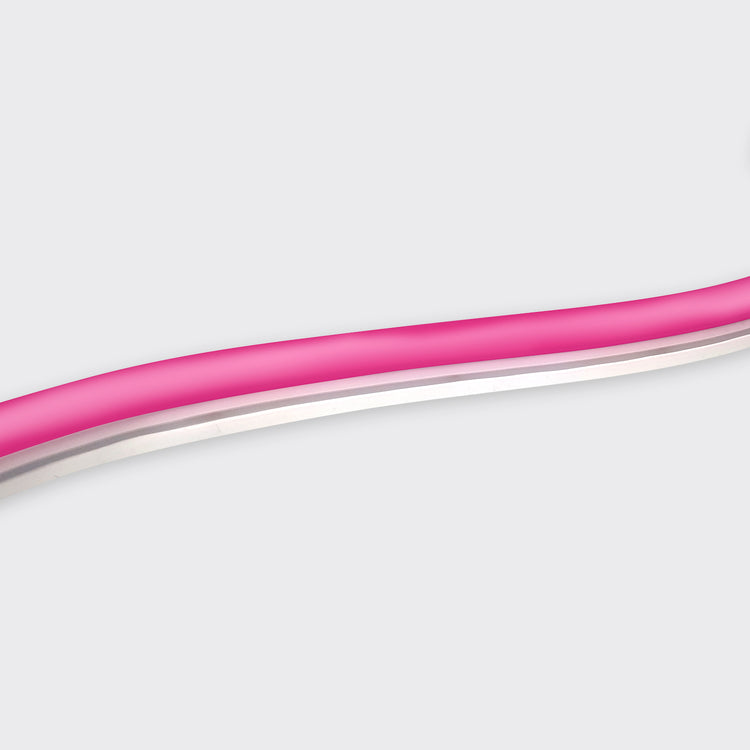

CURVE is an encapsulated RGB LED Ribbon perfect for cove lighting, toe kicks & architectural features in both residential and commercial applications. It is IP66 and has a 25mm bend radius making it ideal for small letters or tight signage corners.

Silicone connectors and end caps are required for IP rating (sold separately).

  • Specification
  • Accessories
  • Downloads
WATTS

12W/m

LUMENS

(R) 45lm/m (G) 180lm/m
(B) 50lm/m

BEAM ANGLE

180°

DIMENSIONS

W10.25 × H17mm
(W12mm for connectors)

CUTTING LENGTH

50mm

MAX RUN PER POWER FEED

10m (max.)

MOUNTING

See mounting accessories pdf

FEATURES

Horizontal Bending

WARRANTY

3 years
