PANORAY Wall Grazer

BL-G-PANORAY-W12-27K

Panoray Freebend by Clear is part of the Bright Light Neon Xtra range.

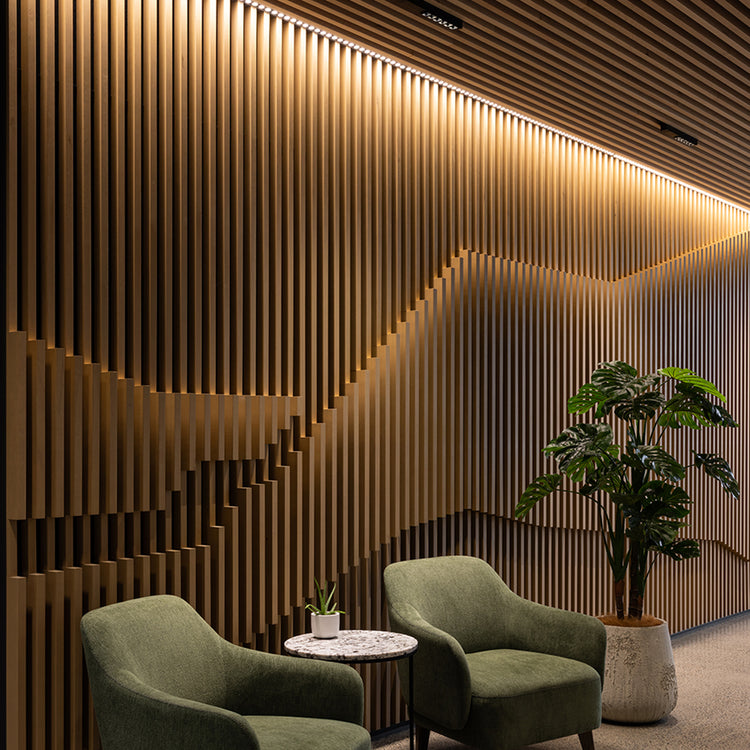

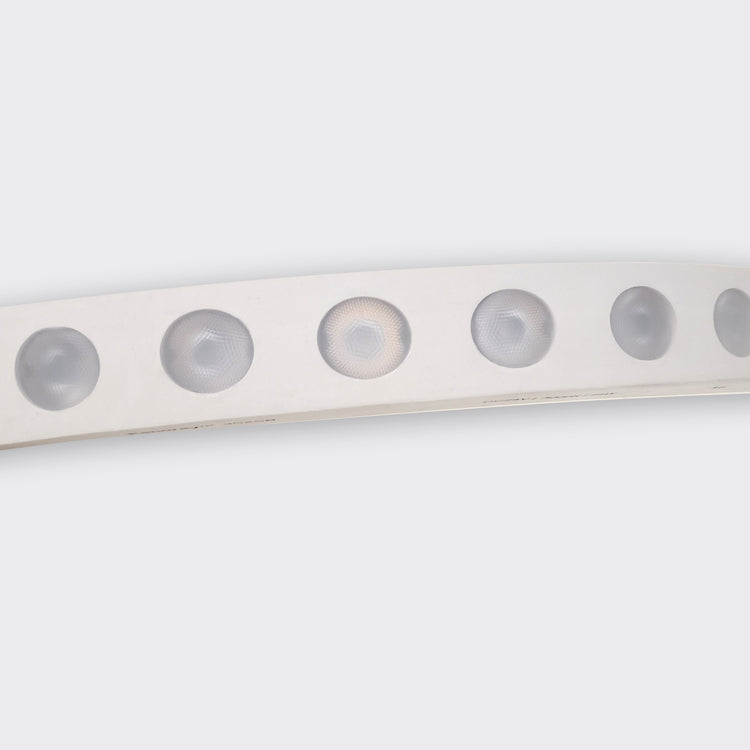

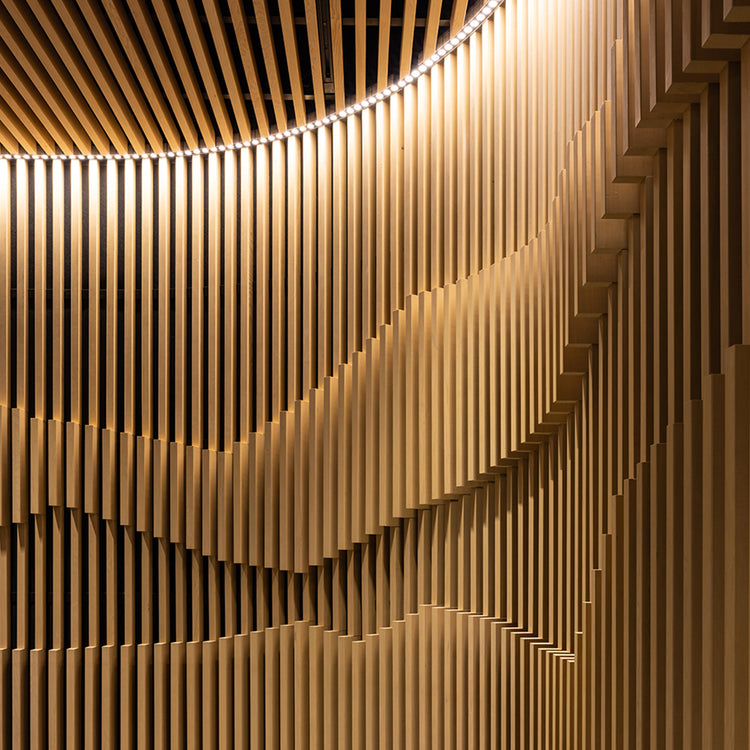

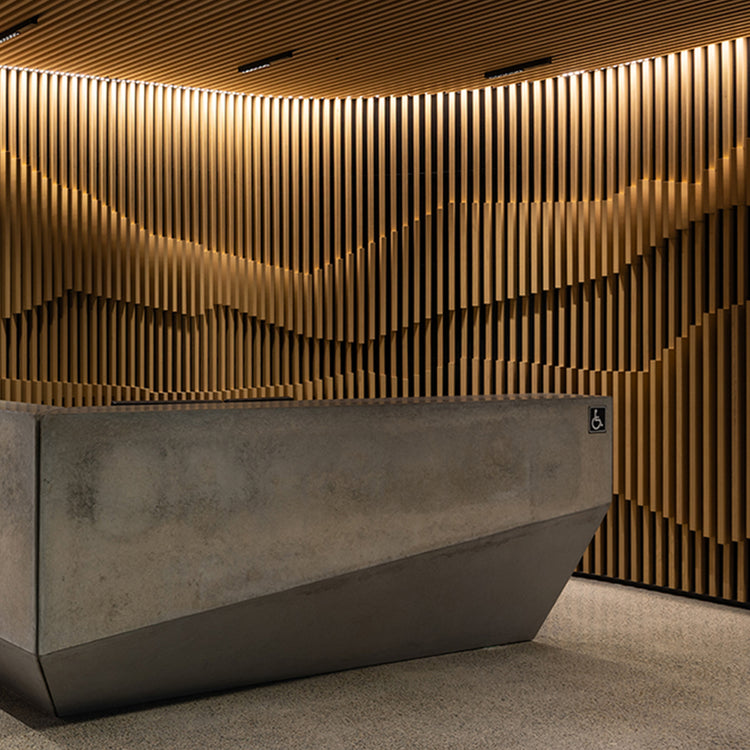

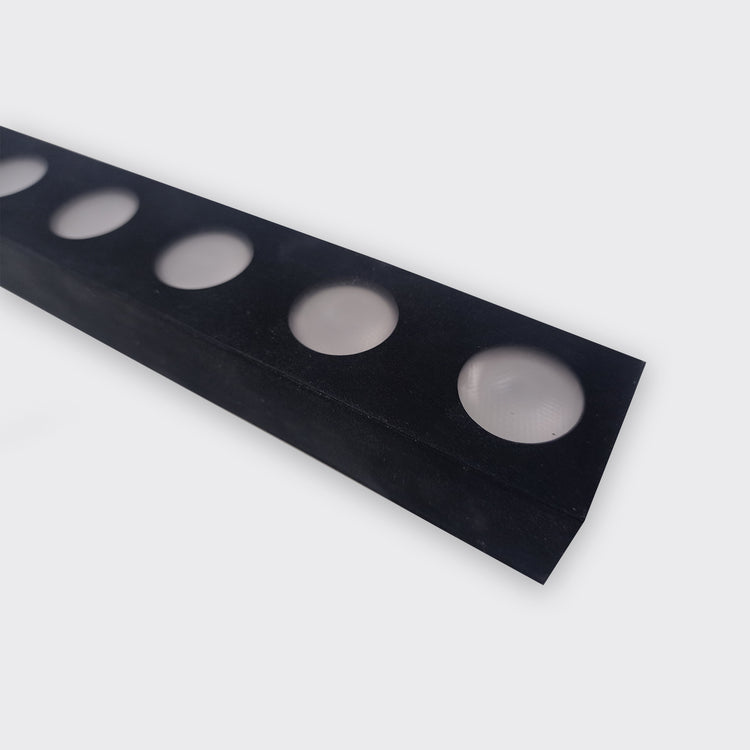

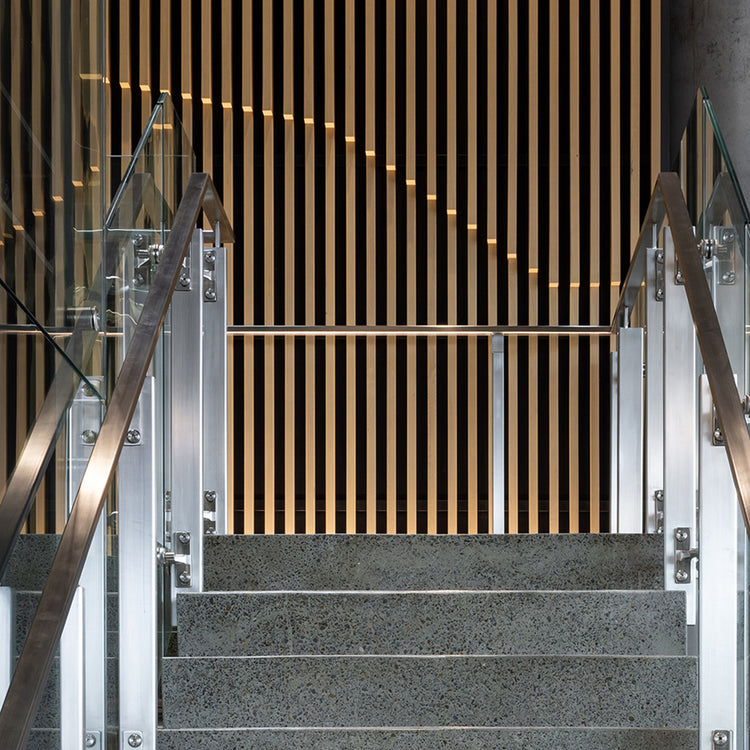

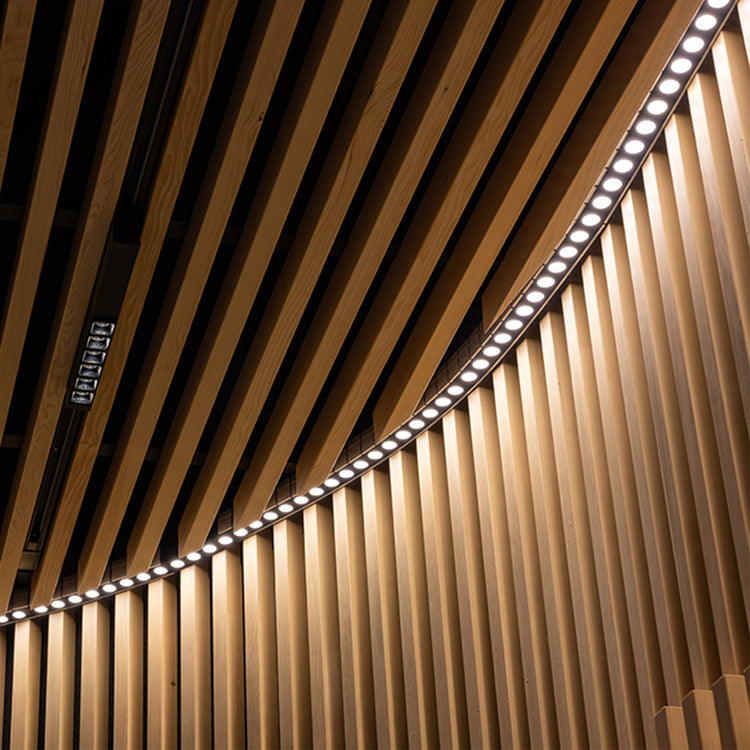

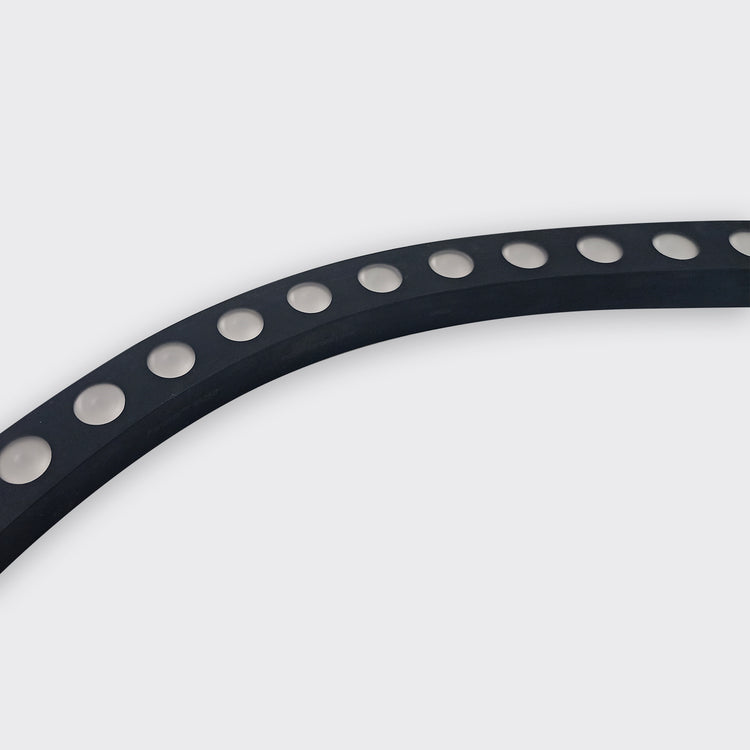

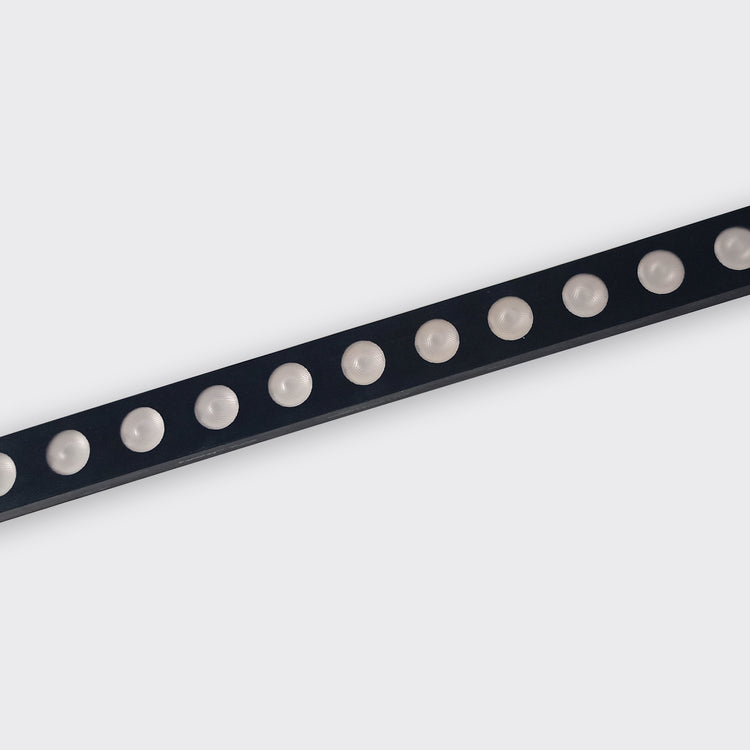

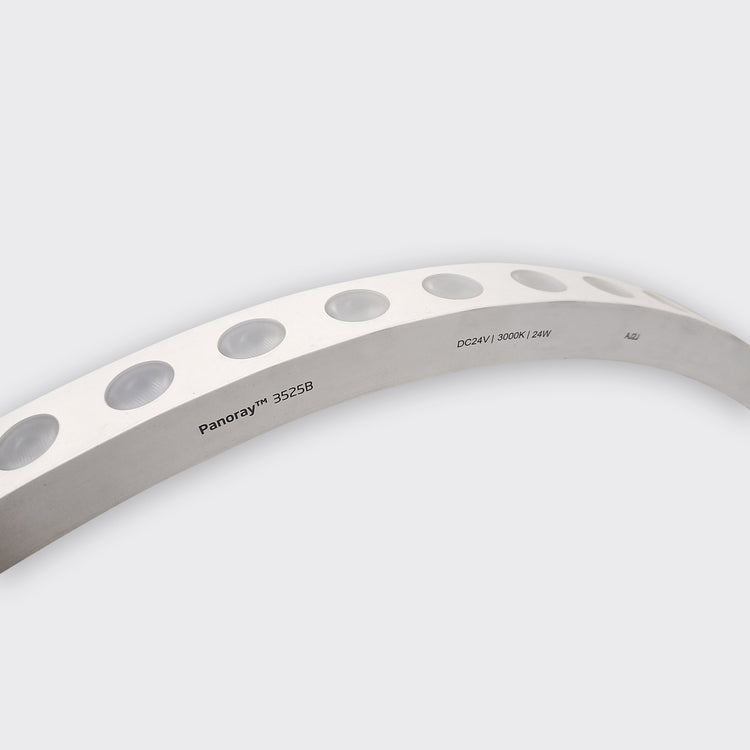

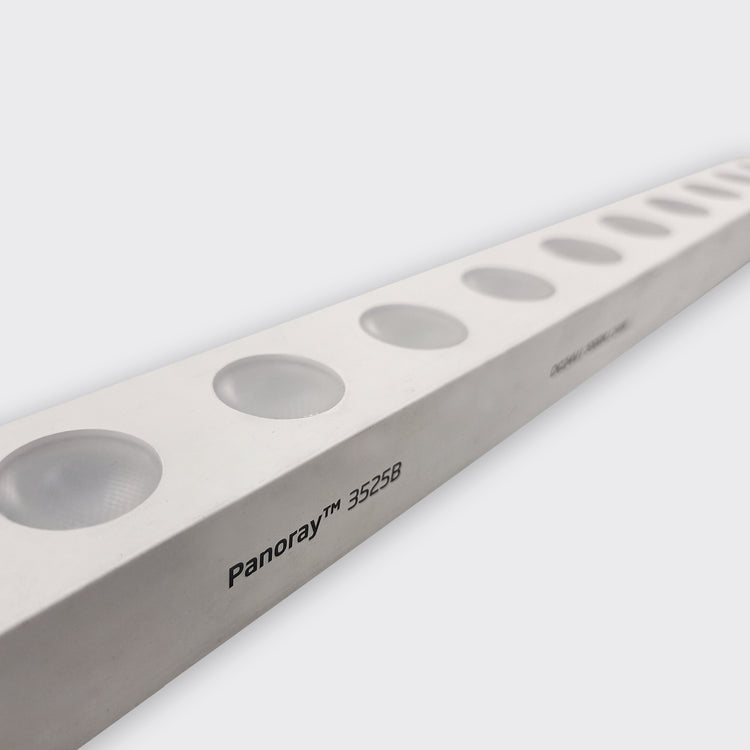

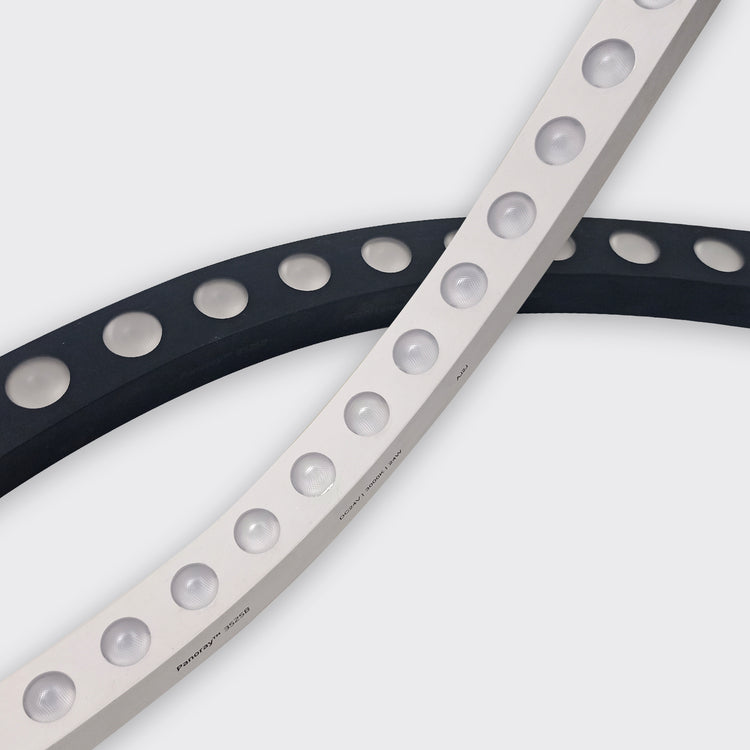

A truly superior wall grazer product, the individual, enclosed lenses allow free movement both vertically and horizontally, and the advanced optic configuration allows for smooth wall grazer with various beam angle options available and finishes of white or black silicone casing. With an IP67 rating it is suitable for both interior and exterior applications.

Available in white, tuneable white, RGB and RGBW.
Pixel addressable options available for all colours - see specification pdf under downloads tab.

Beam angles:
White:  12°, 25°, 15×25°, 15×40°, 15×60°
RGB/RGBW:  20×40°.

This product is made to order at factory - lead times apply.
Talk to us about using Panoray™ in your next project!

  • Specification
  • Downloads
WATTS

24W/m

LUMENS

>1800lm/m

COLOUR TEMPERATURE

2700K

CRI

≥80

BEAM ANGLE

12°

FINISH

White Silicone

DIMENSIONS

W35 × H25mm

CUTTING LENGTH

250mm

MAX RUN PER POWER FEED

5 metres
(not continuous)

MOUNTING

Profile available

FEATURES

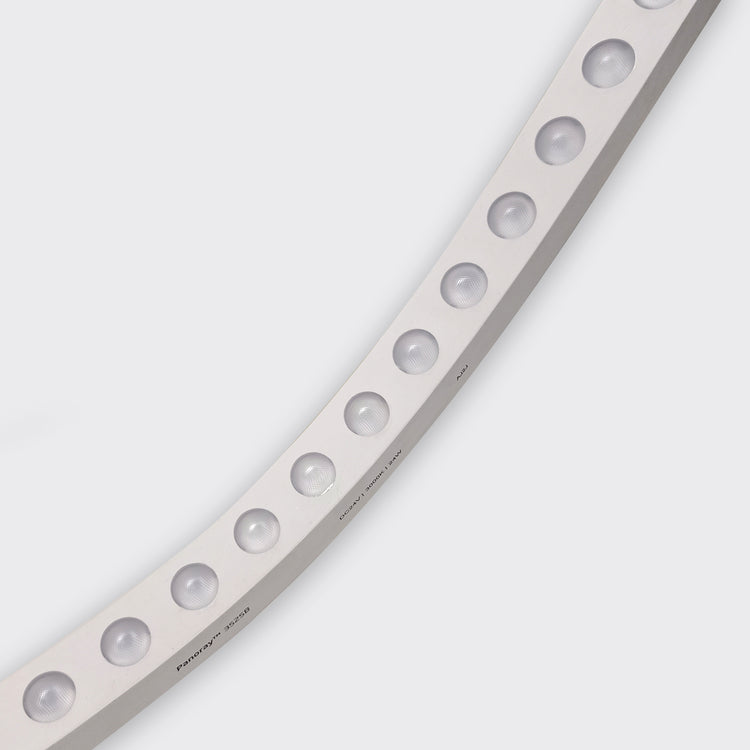

Freebend - Horizontal & Vertical bending

WARRANTY

10 years (white only)

Panoray Freebend | IP67 | Specification Sheet pdf Download Panoray Freebend | IP67 | Installation Guide pdf Download
