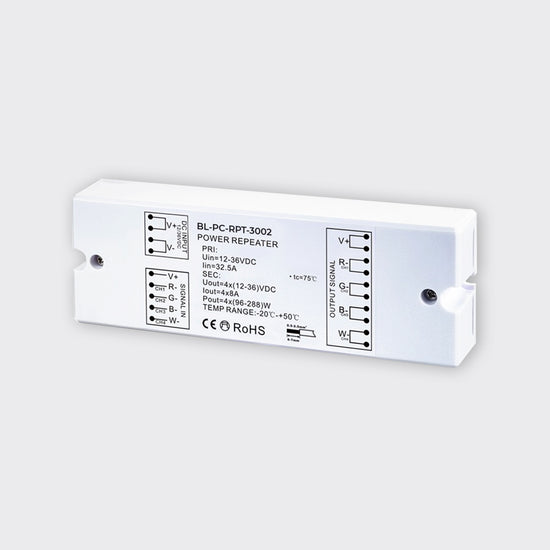

4 × 4–8A Repeater | 12-48V
BL-PC-RPT-3002
This is a 4 × 4–8A channel repeater for 12, 24 or 48V to expand single colour, Tuneable white, RGB, or RGBW linear LED ribbon strip controllers.
This repeater can also convert a 24V controller signal for use with 48V ribbon - such as RGBW ribbon which requires colour control. For this operation, the repeater unit will require a 48V driver. Bright Light is currently working on introducing a 48V power supply, in the meantime talk to us and we can sort a solution for you.
- Specification
- Downloads
CHANNELS
4 × 8A Channels @ 12V/24V/36V
4 × 4A Channels @ 48V
MAX LOADING
96W @ 12V DC
192W @ 24V DC
288W @ 36V DC
192W @ 48V DC
DIMENSIONS
W170 × W59 × H29mm
MOUNTING
Screw fixing
WARRANTY
5 years
