want something different? Custom builds have got you covered!

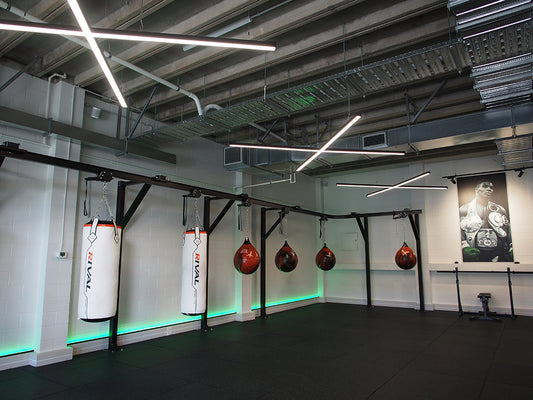

Box Office Illumination
This Auckland based project involved six, three-metre wide crosses, custom-built from Highline 05 50mm and powder-coated black.
Custom Build | Installation Guides
-
Our Custom-builds allow for some unique contructions, so we have put together some installation guides for the common joins. The use of joiners should only be done where Highline 05 fittings are specifically custom-built & include joiners. Drivers will be external.
Can't find an installation guide? Some bespoke fittings are so unique, we don't have installations pre-made. Contact us and we can assist.
-
Straight Join
A simple straight join, depending on project requirements, profile may be
supplied with joiners pre-installed. Talk with our team about your requirements. -
90° / 120° / 135° / 144° Corner Join
Joiners are available for a range of angles. Depending on project requirements, profile may be supplied with mitre cuts and joiners pre-installed. Talk with our team about your requirements.
-
90° Square or Rectangle Join
These can be a bit tricky to assemble and require assembly in a specific order, to avoid angles blocking one another. Talk with our team about your requirements.

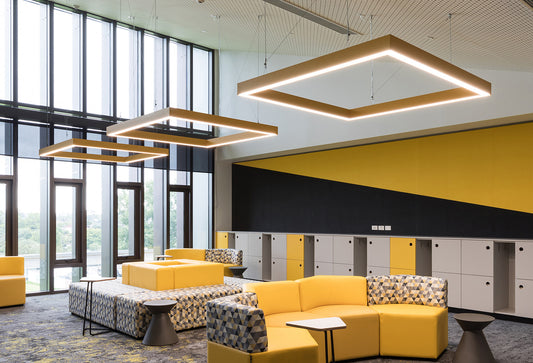

Squares & Rectangles
This project included 14 large-scale, bespoke, custom-build squares and rectangles (some up to 4 metres in length). It used our Highline 05 100mm model with custom colour powder-coating.

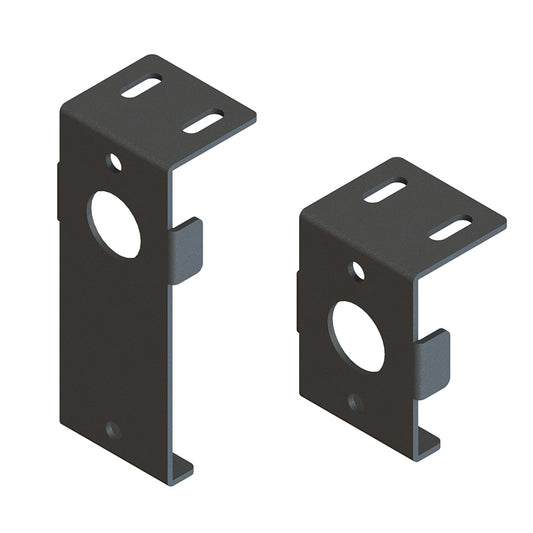

Highline 05 Linear Wall Mount Clips
These deceptively simple wall mount clips, allow for a 9.6mm wall offset and are available in black or white. They are easy to install and the clip location is adjustable to existing wall studs. Custom-build Highline 05 only.
