16W/m COB | RGBW | IP20

BL-LS-COB16-RGBW

16W/m COB (Chip on Board) RGBW LED Ribbon contains 560 LED chips per metre, all covered by a single line of silicone, providing dot-free continuous illumination. With a rating of IP20, it is suitable for general interior applications. Requires 4-channel controller.

RGBW (Red, Green, Blue + White) ribbon provides a rainbow of colour options from hot pinks to vivid blues and anywhere in-between.

Due to the nature of RGBW COB, the solder pads are smaller than standard ribbons. We strongly recommend the use of our 5-core RGBW COB cable, see specification sheet.

  • Specification
  • Accessories
  • Downloads
WATTS

16W/m

LUMENS

R: 104lm/m
G: 336lm/m
B: 96lm/m
W: 344lm/m

COLOUR TEMPERATURE

RGBW

BEAM ANGLE

180°

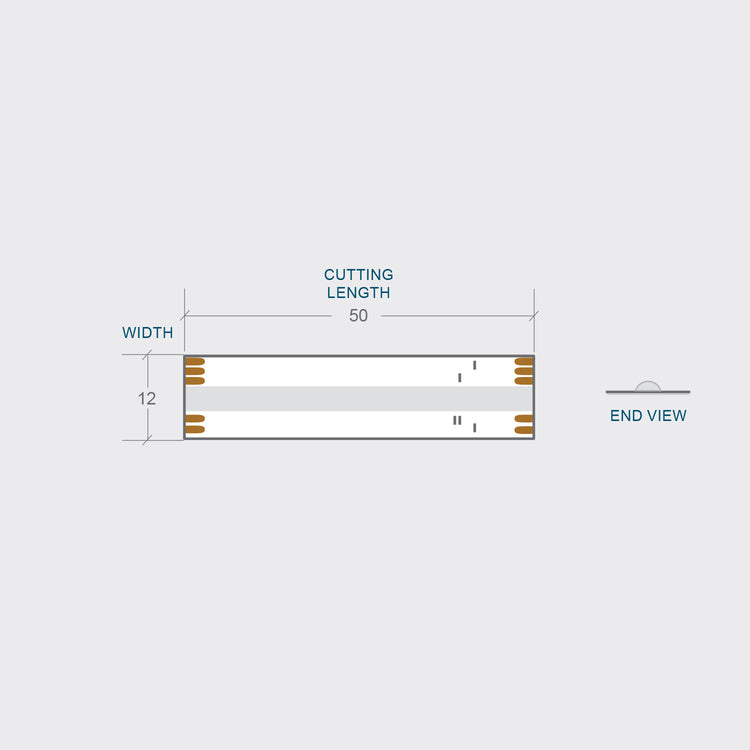

DIMENSIONS

W12 × H2mm

CUTTING LENGTH

50mm

MAX RUN PER POWER FEED

5 metres

MOUNTING

3M adhesive backing (Approved aluminium profile is required)

FEATURES

560 LEDs per metre

WARRANTY

3 years
