HIGHLINE 05 100mm Luminaire | 1000–3000mm

BL-H05100DA-XX-27

The HIGHLINE 05 100mm luminaire is a popular, modern lighting choice for both residential and commercial lighting applications. It can be either suspended as a pendant to provide both down and up lighting or surface mounted with down lighting only. Available between 1-3metres and made to desired length with standard flat or curved edge end caps options. All Highline 05 Luminaires use our rolled diffuser.  Driver onboard.

Longer lengths and bespoke shapes are available by request as custom builds.

ENQUIRE
  • Specification
  • Accessories
  • Downloads
WATTS

25W/m

LUMENS

1900lm/m

DIFFUSER

Rolled Opal

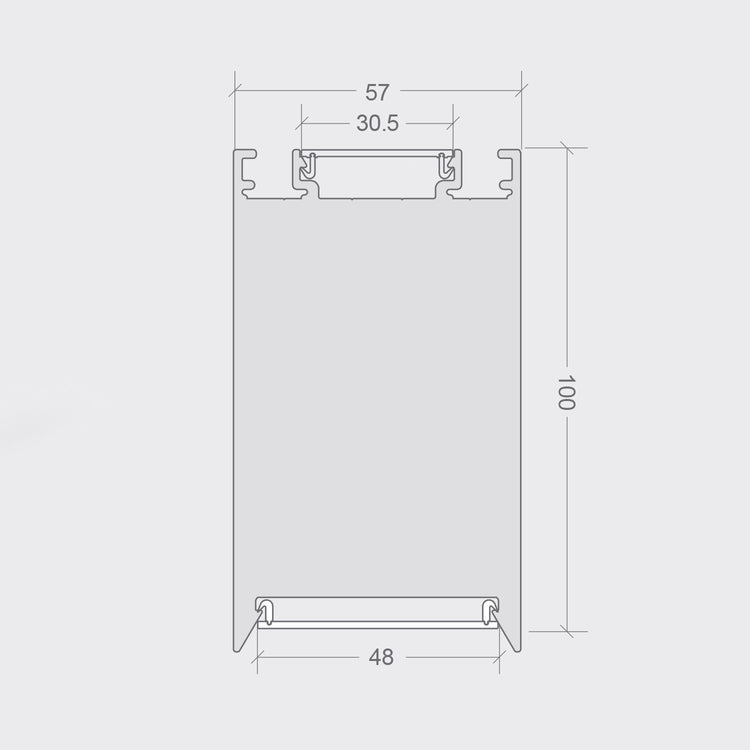

DIMENSIONS

W57 × H100 × L1000–3000mm
(cut to desired length)

MOUNTING

Surface mount or suspend

WARRANTY

5 years

Cable Base

Cable Base

Highline 05 100mm | Specifications pdf Download Highline 05 | Design Spec | Check List pdf Download Highline 05 | Installation Guide pdf Download Highline 05 | Down Light Only | IES File IES Download Highline 05 | Accessories pdf Download Highline 05 | SDoC pdf Download Highline 05 | Brochure pdf Download
