15W/m COB | RGB | IP66

BL-LS-COB15-RGB-IP66

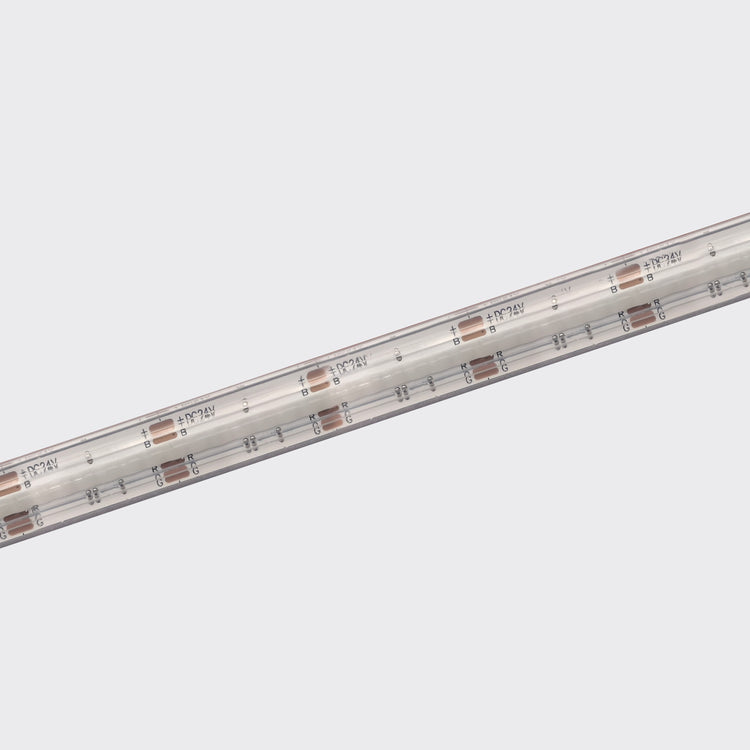

15W/m COB (Chip on Board) RGB LED Ribbon contains a mighty 840 LED chips per metre, all covered by a single line of silicone, providing dot-free continuous illumination. The small 25mm cutting length allows for greater accuracy in installation. Encased in a silicone sleeve to provide a rating of IP66 making it suitable for exterior or interior use.

RGB (Red, Green, Blue) ribbon provides a rainbow of colour options from hot pinks to vivid blues and anywhere in-between.

Silicone connectors and end caps are required for IP rating (sold separately). Suitable for Baseline 05 / 08 and Highline 01 / 02 / 03 / 04.  This product is not suitable for use with our smaller profiles due to the 15mm connector width.

Read more about COB ribbon here.

  • Specification
  • Downloads
WATTS

15W/m

LUMENS

R: 123lm/m
G: 310lm/m
B: 51lm/m

COLOUR TEMPERATURE

RGB

BEAM ANGLE

180°

DIMENSIONS

W12 × H2mm
(W15 × H8mm for connectors)

CUTTING LENGTH

25mm

MAX RUN PER POWER FEED

5 metres

MOUNTING

3M adhesive backing (Approved aluminium profile is required)

FEATURES

840 LEDs per metre

WARRANTY

3 years
