16W/m COB | RGBW | IP66

BL-LS-COB16-RGBW-IP66

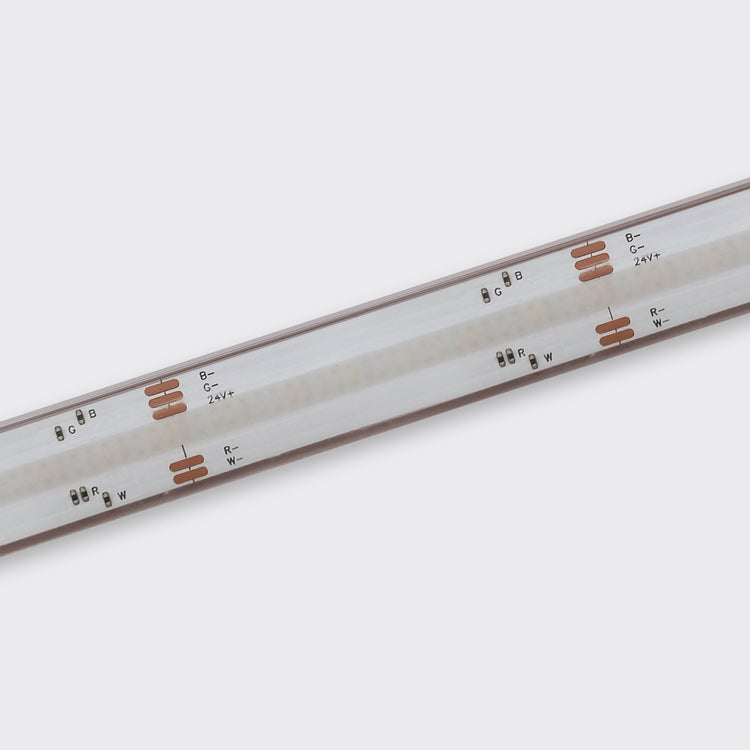

16W/m COB (Chip on Board) RGB LED Ribbon contains 560 LED chips per metre, all covered by a single line of silicone, providing dot-free continuous illumination. Encased in a silicone sleeve to provide a rating of IP66* making it suitable for exterior or interior use.

RGBW (Red, Green, Blue + White) ribbon provides a rainbow of colour options from hot pinks to vivid blues and anywhere in-between.

*Silicone connectors and end caps are required for IP rating (sold separately), see specification sheet.

Suitable for Baseline 05 / 08 and Highline 01 / 02 / 03 / 04.  Also suitable with our Baseline 01 V1 (enquire).  This product is not suitable for use with our smaller profiles due to the connector width.

Read more about COB ribbon here.

  • Specification
  • Accessories
  • Downloads
WATTS

16W/m

LUMENS

R: 104lm/m
G: 336lm/m
B: 96lm/m
W: 344lm/m

COLOUR TEMPERATURE

RGBW

BEAM ANGLE

180°

DIMENSIONS

W14.5 × H4mm
(W17 × H6mm for connectors)

CUTTING LENGTH

50mm

MAX RUN PER POWER FEED

5 metres

MOUNTING

3M adhesive backing. Suitable for Baseline 05 / 08 and Highline 01 / 02 / 03 / 04.
Also suitable for our Baseline 01 V1 (enquire).

FEATURES

560 LEDs per metre

WARRANTY

3 years
